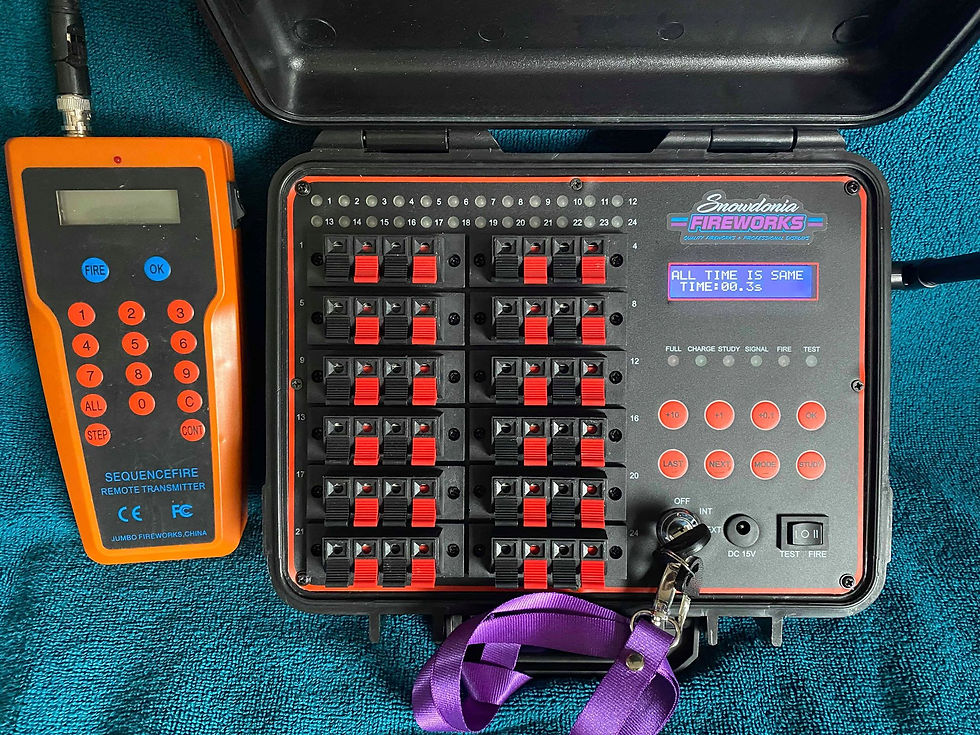

Sequence Fire 24Cue Firing System

Sequence Fire 24Cue Firing System


We first started using the Sequence fire as our own method of firing at displays. We found it affordable and very easy to use. This is a Sequencefire 24 Wireless Firing System. It give you 24 seperate cues to fire from. It represents the newest technology in consumer firing systems. And when combined with our e match igniters, allows you to put on a dramatic fireworks display just like the pros - at a fraction of the cost. Plus you get to watch your displays along with your guests! Now there is no longer any reason to hand light your displays. Do it like the pros at a fraction of the cost!


The System comes with instructions, Charger , Remote and batteries, FREE 15 x e matches to get you started.



This convenient system is extremely reliable and has many benefits of more expensive professional systems:

  •   FCC Certified (FCC ID: AYHFS2012)

  •   The range from the remote to the field module (receiver) is about 350 feet (+/-) depending on surroundings.

  •   The field module is programmable and may be reassigned to different Sequencefire remotes. One Sequence- fire 40 remote can control multiple Sequencefire  field modules in unison.

  •   The system has five firing modes: instant on-demand cue firing in any order, firing in stepped sequence, firing with time delays between all cues set equivalently, firing with time delays between all cues set arbitrarily, and firing all cues at once.

  •   The onboard timing sequencer allows the time delay between each cue to be set anywhere between 0.1 and 99.9 seconds.

  •   The firing system has a keyed safety and will not operate unless the key has been inserted and turned to the ON position.

  •   This system is highly sensitivity with excellent anti-jam performance. It is extremely reliable and easy to use.

  •   The RF transmission between the remote transmitters and receiver is very secure. Once a receiver is activated

    by a remote transmitter, that receiver will respond only to the transmitter it has been assigned to. 1

  •   The remote transmitter comes with an on/off switch for added safety and security. You cannot inadvertently fire a cue with the remote power switch in the off position. Turn the remote power on only when ready to fire.

  •   The field module receiver has a 3-position switch for TEST, FIRE, and STANDBY.

  •   Dual Power Modes: The field module operates on an internal rechargeable battery or can be connected to an

    optional external battery .

  •   LINK capable: Using our “SequenceLink” technology, multiple Sequencefire 24 field modules can be linked to- gether using standard duplex wire. When the firing sequence of one system finishes, that system then passes the “start” command to the next system to which it is connected.

  •   Charging circuit: The system comes with an internal charging circuit and plug-in wall charger. The internal charging circuit is only used to recharge the internal battery. The internal charging circuit will not charge an ex- ternal battery. The wall charger will also not power the system for firing.

  •   Internal Circuit Overload Protection: The electrical circuitry of each cue is protected from thermal overload. Overloading can occur when there exists a short circuit in the wiring of igniters to the system. The Sequencefire 24 system, however, contains thermal overload circuit protection. So even if a short circuit exists in the wiring of the igniters to the system, thermal overload will not occur.

  •   Using a remote firing system like our Sequencefire 24 is much safer than lighting by hand.

  •   The Sequencefire 24 is a versatile and economical answer to a vast matrix of consumer wireless firing demands.


The manufacturers, distributors, and sellers of this device accept no responsibility whatsoever for any damage, inju- ry, or loss, financial or otherwise, resulting directly or indirectly from the use, misuse, function, or malfunction of this device. By purchasing and using this device you understand and accept this disclaimer.
